奶粉是一種質地細膩、重量輕、對衛生保健高度敏感的產品。
Milk powder is a fine, lightweight, and highly hygienic-sensitive product.袋裝包裝過程中，必須特別注意灰塵控制、灌裝準確性、密封質量和整體產品安全性。

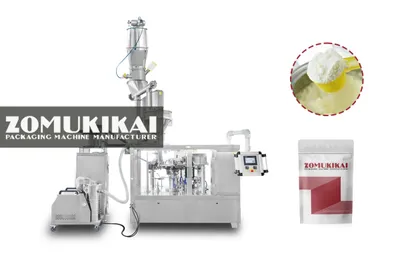

溫州術睦機械有限公司 has developed its latest powder spoon-in-bag packaging machine, specifically designed for milk powder and other nutritional powders, offering a reliable and clean turnkey solution.
Hygienic Powder Handling with Vacuum Conveying
To meet strict hygiene requirements, the system uses vacuum powder conveying for material feeding.
全封閉粉末傳輸防止污染和粉塵暴露提高操作員安全符合食品級衛生標準
- 8
- 站預製袋包裝
- 工藝
8-Station Premade Pouch Packaging Process
溫州術睦機械有限公司's premade pouch packaging machine integrates multiple functions within only 8 stations, achieving a compact, efficient, and stable layout:
- Automatic pouch feeding
- Date coding
- Zipper opening
- Pouch opening
- Powder filling
- Scoop insertion
- Dust removal
- Air evacuation, heat sealing & finished pouch discharge
Despite the limited number of stations, all key processes are completed automatically with high efficiency.
Powder Filling: Accuracy Across 10-1000 g
The system is designed for 10-1000 g powder filling, with special engineering considerations based on filling weight.
500克以上粉末填充
- Standard screw auger filling system
- Powder weight accuracy is not affected by internal pressure
- Stable and repeatable dosing performance
Above 500 g Powder Filling
When powder weight exceeds 500 g, vacuum conveying may cause uneven pressure inside the screw auger hopper, which can lead to larger dosing deviations.
在粉末輸送過程中充當緩衝階段確保均勻物料輸送減少螺旋料斗內的壓力波動顯著提高大容量粉末包裝的灌裝準確性
- 勺子
- 插入
- 系統
Spoon Insertion System
Each pouch requires one spoon per bag.
- 先進
- 的除塵
- 系統
Advanced Dust Removal System
Dust control is a critical focus in milk powder packaging.
袋裝口腔灰塵清潔
- 粉塵
- 回收
粉末和勺子插入後：
- 該
- 過程改善了包裝外觀、密封強度和貨架穩定性
- 。
Dust Recovery
- Collected powder can be recycled and reused, reducing material waste
Air Evacuation and Final Sealing
After powder and scoop insertion:
- Excess air inside the pouch is evacuated
- The pouch is heat sealed
- The pouch is shaped and stabilized
- Finished products are discharged smoothly via conveyor
This process improves package appearance, sealing strength, and shelf stability.
Why Choose 溫州術睦機械有限公司?
- Designed specifically for milk powder and nutritional powders
- Excellent dust control and hygienic performance
- Accurate filling across a wide weight range
- Integrated scoop-in-bag automation
- Compact 8-station design with high efficiency
- Suitable for infant formula, dairy powder, protein powder, and nutritional supplements
